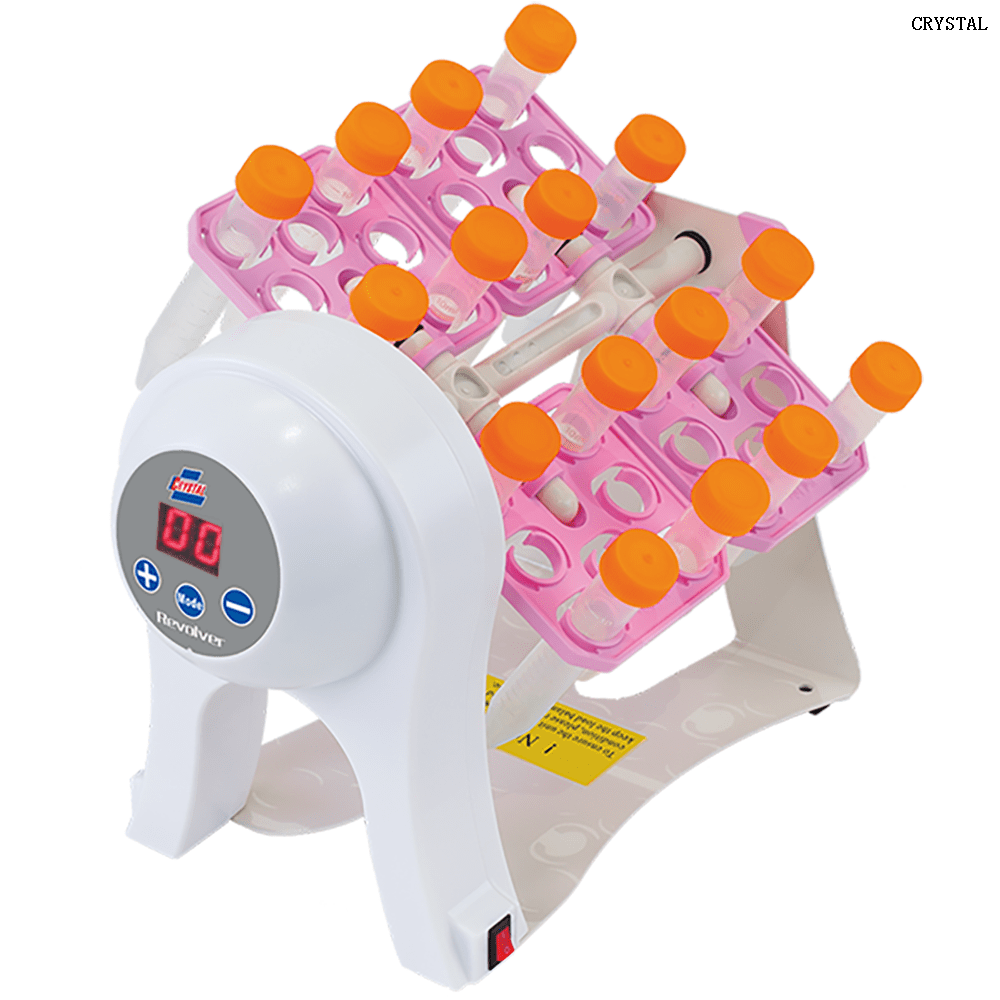

The Tube Revolver can be used in a variety of laboratory fields such as Molecular Biology, Biochemistry, Clinical, and Histochemistry. The rotisseries are interchangeable so that the unit works with a variety of tube sizes. The four rotisserie paddles can be mixed for a combination of different tubes. Each paddle direction can be independently adjusted from 0-90 degrees.
In addition to the speed adjustability and digital display, Model TR-02UE can be programmed to operate in a back and forth oscillating mode, simulating the mixing process by hand. Oscillation occurs at every 40 degrees in the rotation. The combination of rotation and oscillation mixes liquid more effectively.
TR-02UE
Crystal
SKU: | |
---|---|
Availability: | |
Quantity: | |
Model | TR-02UW |
Product Name | Variable Speed Tube Revolver |
Speed | 10~40 RPM |
Speed Accuracy | ±1 RPM |
Capacity | 84×0.5/0.8mL / 60×1.5/2.0mL / 28×5/7mL / 28×10/15mL / 6x50mL Tubes |
Accessories Included in standard Packaging | 2xTRA01 (10/15mL Paddle) + 2xTRA02 (5/7mL Paddle) + 2xTRA03 (1.5/2mL Paddle) + 2xTRA04 (0.5/0.8mL Paddle) + 1xTRA05 (50mL Tube Paddle) |
Oscillation Mode | Oscillation mode oscillates rotisserie every 40° |
Ambient Temperature | 4°C~60°C |
Ambient Relative Humidity | ≤80% |
Power Supply | AC110V±11V, 60Hz |
Max. Power | 10W |
Dimensions WxDxH | 148 x 260 x 195 mm (5.8 x 10.2 x 7.7 in) |
Net Weight | 1 kg (2.2 lb) |
Protection Level | IP21 |
Certifications | CE, RoHS, WEEE |
Model | TR-02UW |
Product Name | Variable Speed Tube Revolver |
Speed | 10~40 RPM |
Speed Accuracy | ±1 RPM |
Capacity | 84×0.5/0.8mL / 60×1.5/2.0mL / 28×5/7mL / 28×10/15mL / 6x50mL Tubes |
Accessories Included in standard Packaging | 2xTRA01 (10/15mL Paddle) + 2xTRA02 (5/7mL Paddle) + 2xTRA03 (1.5/2mL Paddle) + 2xTRA04 (0.5/0.8mL Paddle) + 1xTRA05 (50mL Tube Paddle) |
Oscillation Mode | Oscillation mode oscillates rotisserie every 40° |
Ambient Temperature | 4°C~60°C |
Ambient Relative Humidity | ≤80% |
Power Supply | AC110V±11V, 60Hz |
Max. Power | 10W |
Dimensions WxDxH | 148 x 260 x 195 mm (5.8 x 10.2 x 7.7 in) |
Net Weight | 1 kg (2.2 lb) |
Protection Level | IP21 |
Certifications | CE, RoHS, WEEE |
Part number | Description | Package |
TRA01 | Rotisserie Paddles for 10/15ml Tubes, 2/pack | 2 pcs |
TRA02 | Rotisserie Paddles for 5ml/7ml Tubes, 2/pack | 2 pcs |
TRA03 | Rotisserie Paddles for 1.5ml/2.0ml Tubes, 2/pack | 2 pcs |
TRA04 | Rotisserie Paddles for 0.5ml/0.8ml Tubes, 2/pack | 2 pcs |
TRA05 | Rotisserie Paddles for 50ml Tubes, 1/pack | 1 pc |
TRA06 | Magnetic Platform for Liquid Mixing in Bags | 1 pc |
Part number | Description | Package |
TRA01 | Rotisserie Paddles for 10/15ml Tubes, 2/pack | 2 pcs |
TRA02 | Rotisserie Paddles for 5ml/7ml Tubes, 2/pack | 2 pcs |
TRA03 | Rotisserie Paddles for 1.5ml/2.0ml Tubes, 2/pack | 2 pcs |
TRA04 | Rotisserie Paddles for 0.5ml/0.8ml Tubes, 2/pack | 2 pcs |
TRA05 | Rotisserie Paddles for 50ml Tubes, 1/pack | 1 pc |
TRA06 | Magnetic Platform for Liquid Mixing in Bags | 1 pc |
