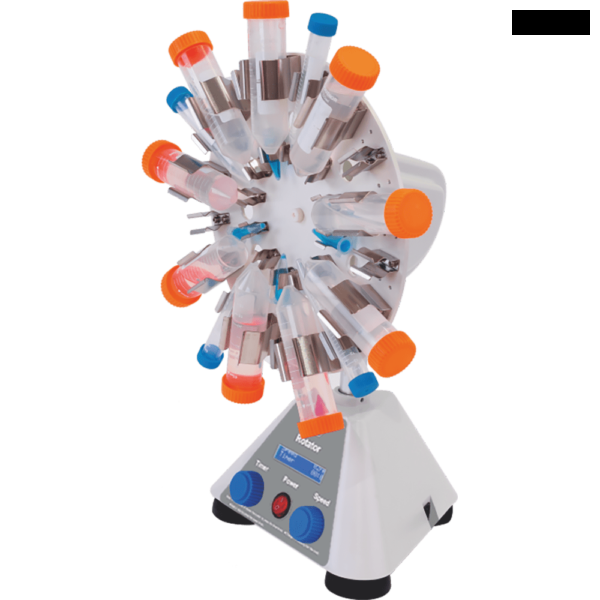

Digital Tube Rotator TR-04UW

The tube rotator is an ideal instrument for numerous applications where high efficiency and consistent mixing are needed. A common place for this instrument is clinical, research and teaching laboratories. This instrument is available in an economical fixed speed model and a variable speed model with timer.
Price: 708
  • TR-04UE
  • Crystal
SKU:
Availability:
Quantity:
ModelTR-04UE
Product NameDigital Tube Rotator
Speed2~80 RPM
Speed Accuracy±1 RPM
Tilt Angle90°C~180°C (Any Angle in Range)
Timer0~99h59min
Carousel DiameterØ250mm (Ø9.84in)
Capacity12x50mL / 18x15mL / 48x2mL / 9x50mL + 9x15mL + 12x2mL
DisplayLCD
Accessories Included in standard PackagingTRA22 (Carousel for 12x50mL Tubes)
Ambient Humidity5°C~40°C
Relative Humidity≤80%
Power SupplyAC110V, 60Hz
Max. Power6W
Dimensions W x D x H215 x 334 x 405 mm (13.2 x 8.5 x 15.9 in)
Net Weight4 kg (8.8 lb)
Protection LevelIP21
CertificationsCE


Part numberDescriptionPackage
TRA19Working plate for multi-tubes, 9x50ml/9x15ml/12x2ml;Apply to TR-03/TR-04U;1 pc
TRA20Working plate for 2ml tubes, 48x2ml;Apply to TR-03/TR-04U;1 pc
TRA21Working plate for 15ml tubes, 18x15ml;Apply to TR-03/TR-04U;1 pc
TRA22Working plate for 50ml tubes, 12x50ml;Apply to TR-03/TR-04U;1 pc
TRA15Tube Holders for 50ml Tubes1 pc
TRA16Tube Holders for 5/10/15/20ml Tubes1 pc
TRA17Tube Holders for 1.5/2ml Tubes1 pc
