OS-06UW
Crystal
SKU: | |
---|---|
Availability: | |
Quantity: | |
Model | OS-06UW |
Product Name | Multi Purpose Shaker |
Speed | 50~450RPM |
Speed Accuracy | ±1RPM @ ≤100RPM ±1% @ >100RPM |
Orbital Diameter | Ø10mm (0.39″) |
Timer | 0~99hr59min |
Platform Dimensions | 310x284mm (12.2×11.2″) |
Capacity | 20x50ml / 8x100ml / 8x150ml / 8x200ml / 8x250ml / 6x500ml / 4x1000ml / 2x2000ml / 2x3000ml / 1x5000ml / 2xsmall tube racks |
Max Load | 4.5kg (9.9lb) |
Display | LED |
Accessories Included in Standard Packaging | OSA21 Universal Aluminum Platform |
Ambient Temperature | 5°C~40°C |
Ambient Relative Humidity | ≤80% |
Power Supply | AC100~240V 50/60Hz |
Max Power | 40W |
Dimensions (LxWxH) | 440x296x129mm (17.3×11.7×5.1″) |
Net Weight | 15kg (33.1lb) |
Protection Level | IP21 |
Certifications | cCSAus, CE, RoHS, WEEE |
Model | OS-06UW |
Product Name | Multi Purpose Shaker |
Speed | 50~450RPM |
Speed Accuracy | ±1RPM @ ≤100RPM ±1% @ >100RPM |
Orbital Diameter | Ø10mm (0.39″) |
Timer | 0~99hr59min |
Platform Dimensions | 310x284mm (12.2×11.2″) |
Capacity | 20x50ml / 8x100ml / 8x150ml / 8x200ml / 8x250ml / 6x500ml / 4x1000ml / 2x2000ml / 2x3000ml / 1x5000ml / 2xsmall tube racks |
Max Load | 4.5kg (9.9lb) |
Display | LED |
Accessories Included in Standard Packaging | OSA21 Universal Aluminum Platform |
Ambient Temperature | 5°C~40°C |
Ambient Relative Humidity | ≤80% |
Power Supply | AC100~240V 50/60Hz |
Max Power | 40W |
Dimensions (LxWxH) | 440x296x129mm (17.3×11.7×5.1″) |
Net Weight | 15kg (33.1lb) |
Protection Level | IP21 |
Certifications | cCSAus, CE, RoHS, WEEE |
Part number | Description | Max capacity for OS-06UW | Package | |
---|---|---|---|---|

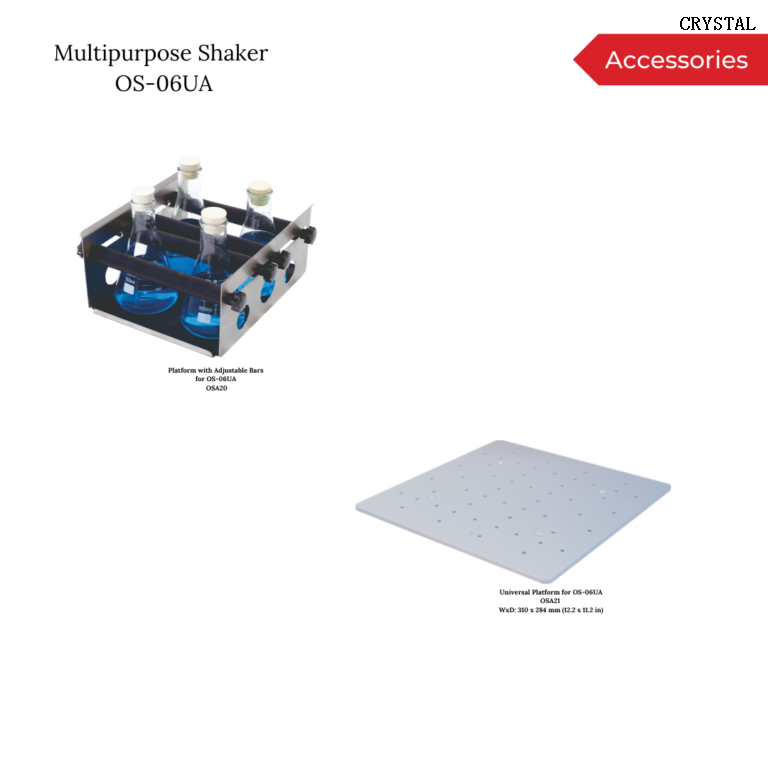

Shaking Platform | OSA17 | Platform with non-skid mat WxDxH: 327×289×22mm | 1 | 1pc/pack |
Shaking Platform | OSA20 | Platform with Adjustable Bars WxDxH: 306x303x145mm | 1 | 1pc/pack |
Shaking Platform | OSA21 | Universal Aluminum Platform WxD :310 x 284mm | 1 | 1pc/pack |
Flask clamp | IS-A50 | Stainless steel, hold 25ml flask | 20 | 1pc/pack |
Flask clamp | IS-A1 | Stainless steel, hold 50ml flask | 20 | 1pc/pack |
Flask clamp | IS-A2 | Stainless steel, hold 100ml flask | 8 | 1pc/pack |
Flask clamp | IS-A3 | Stainless steel, hold 150ml flask | 8 | 1pc/pack |
Flask clamp | IS-A4 | Stainless steel, hold 200ml flask | 8 | 1pc/pack |
Flask clamp | IS-A5 | Stainless steel, hold 250ml flask | 8 | 1pc/pack |
Flask clamp | IS-A6 | Stainless steel, hold 500ml flask | 6 | 1pc/pack |
Flask clamp | IS-A7 | Stainless steel, hold 1000ml flask | 4 | 1pc/pack |
Flask clamp | IS-A8 | Stainless steel, hold 2000ml flask | 2 | 1pc/pack |
Flask clamp | IS-A9 | Stainless steel, hold 3000ml flask | 2 | 1pc/pack |
Flask clamp | IS-A10 | Stainless steel, hold 5000ml flask | 1 | 1pc/pack |
96-well microplate holder | IS-A13 | Hold microwell plate WxD: 136x96mm | 5 | 1pc/pack |
Tube rack | IS-A11 | Hold 40 tubes x Φ14mm, for 5ml tubes | 2 | 1pc/pack |
Tube rack | IS-A12 | Hold 40 tubes x Φ16mm, for 10ml tubes | 2 | 1pc/pack |
Adjustable angle tube rack | IS-A20 | Hold 40 tubes x Φ14mm, for 5ml tubes | 2 | 1pc/pack |
Adjustable angle tube rack | IS-A21 | Hold 40 tubes x Φ16mm, for 10ml tubes | 2 | 1pc/pack |
Separating funnel fixture | IS-A35 | For separating funnel with volume greater than 500ml | 2 | 1pc/pack |
Infusion bottle clamp | IS-A33 | Hold 500ml infusion bottle | 5 | 1pc/pack |
Infusion bottle clamp | IS-A34 | Hold 1000ml infusion bottle | 5 | 1pc/pack |
Sticky mat | IS-A47 | 140x140mm | 4 | 1pc/pack |
Part number | Description | Max capacity for OS-06UW | Package | |
---|---|---|---|---|
Shaking Platform | OSA17 | Platform with non-skid mat WxDxH: 327×289×22mm | 1 | 1pc/pack |
Shaking Platform | OSA20 | Platform with Adjustable Bars WxDxH: 306x303x145mm | 1 | 1pc/pack |
Shaking Platform | OSA21 | Universal Aluminum Platform WxD :310 x 284mm | 1 | 1pc/pack |
Flask clamp | IS-A50 | Stainless steel, hold 25ml flask | 20 | 1pc/pack |
Flask clamp | IS-A1 | Stainless steel, hold 50ml flask | 20 | 1pc/pack |
Flask clamp | IS-A2 | Stainless steel, hold 100ml flask | 8 | 1pc/pack |
Flask clamp | IS-A3 | Stainless steel, hold 150ml flask | 8 | 1pc/pack |
Flask clamp | IS-A4 | Stainless steel, hold 200ml flask | 8 | 1pc/pack |
Flask clamp | IS-A5 | Stainless steel, hold 250ml flask | 8 | 1pc/pack |
Flask clamp | IS-A6 | Stainless steel, hold 500ml flask | 6 | 1pc/pack |
Flask clamp | IS-A7 | Stainless steel, hold 1000ml flask | 4 | 1pc/pack |
Flask clamp | IS-A8 | Stainless steel, hold 2000ml flask | 2 | 1pc/pack |
Flask clamp | IS-A9 | Stainless steel, hold 3000ml flask | 2 | 1pc/pack |
Flask clamp | IS-A10 | Stainless steel, hold 5000ml flask | 1 | 1pc/pack |
96-well microplate holder | IS-A13 | Hold microwell plate WxD: 136x96mm | 5 | 1pc/pack |
Tube rack | IS-A11 | Hold 40 tubes x Φ14mm, for 5ml tubes | 2 | 1pc/pack |
Tube rack | IS-A12 | Hold 40 tubes x Φ16mm, for 10ml tubes | 2 | 1pc/pack |
Adjustable angle tube rack | IS-A20 | Hold 40 tubes x Φ14mm, for 5ml tubes | 2 | 1pc/pack |
Adjustable angle tube rack | IS-A21 | Hold 40 tubes x Φ16mm, for 10ml tubes | 2 | 1pc/pack |
Separating funnel fixture | IS-A35 | For separating funnel with volume greater than 500ml | 2 | 1pc/pack |
Infusion bottle clamp | IS-A33 | Hold 500ml infusion bottle | 5 | 1pc/pack |
Infusion bottle clamp | IS-A34 | Hold 1000ml infusion bottle | 5 | 1pc/pack |
Sticky mat | IS-A47 | 140x140mm | 4 | 1pc/pack |
