OS-07UW
Crystal
SKU: | |
---|---|
Availability: | |
Quantity: | |
Model | OS-07UW |
Product Name | Microplate Shaker |
Speed | 150~1000RPM |
Speed Accuracy | ± 1% (@ ≤ 299 RPM)± 2% (@ > 299 RPM) |
Orbital Diameter | Ø2.5mm (0.1 in) |
Timer | 0~99hr59min |
Platform Dimensions | 275 × 235 mm (10.8 × 9.3 in) |
Capacity | 4×Microplates / 6×Microplates (with OSA15 Large Platform Assembly) / 2×Tube Racks |
Max Load | 4 kg (8.8 lb) |
Display | LED |
Accessories Included in Standard Packaging | Standard Platform with 6 pcs of OSA13 (96-well Microplate Holder) |
Ambient Temperature | 5°C~40°C |
Ambient Relative Humidity | ≤80% |
Power Supply | AC110V, 60Hz |
Max Power | 72W |
Dimensions (WxDxH) | 296 x 440 × 142 mm (11.7 x 17.3 × 5.6 in) |
Net Weight | 15 kg (33.1 lb) |
Protection Level | IP21 |
Certifications | cCSAus, CE, RoHS, WEEE |
Model | OS-07UW |
Product Name | Microplate Shaker |
Speed | 150~1000RPM |
Speed Accuracy | ± 1% (@ ≤ 299 RPM)± 2% (@ > 299 RPM) |
Orbital Diameter | Ø2.5mm (0.1 in) |
Timer | 0~99hr59min |
Platform Dimensions | 275 × 235 mm (10.8 × 9.3 in) |
Capacity | 4×Microplates / 6×Microplates (with OSA15 Large Platform Assembly) / 2×Tube Racks |
Max Load | 4 kg (8.8 lb) |
Display | LED |
Accessories Included in Standard Packaging | Standard Platform with 6 pcs of OSA13 (96-well Microplate Holder) |
Ambient Temperature | 5°C~40°C |
Ambient Relative Humidity | ≤80% |
Power Supply | AC110V, 60Hz |
Max Power | 72W |
Dimensions (WxDxH) | 296 x 440 × 142 mm (11.7 x 17.3 × 5.6 in) |
Net Weight | 15 kg (33.1 lb) |
Protection Level | IP21 |
Certifications | cCSAus, CE, RoHS, WEEE |
Part number | Description | Package |
---|---|---|
NSA01 | Accessory, Rubber stripes, 180x7mm | 6 pcs/pack |

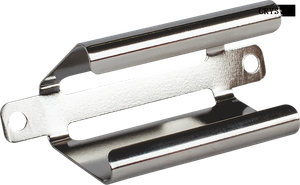

OSA13 | 96-Well Microplate Holder | 1 pc/pack |

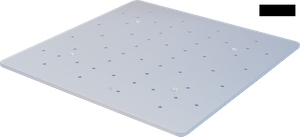

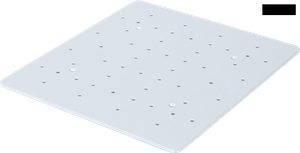

OSA14 | Large capacity platform,292x275mm | 1 pc/pack |
OSA15 | Large capacity platform with 7xOSA13(microplate holder),292x275mm | 1 pc/pack |
