Dry Bath Block

Block are constructed of aluminium alloy. Applied to a varity of tubes.

Price: € 42 - 100

Brand:
Crystal

Model:	DBA01 DBA02 DBA03 DBA04 DBA06 DBA07 DBA08 DBA09 DBA10 DBA12 DBA16 DBA17 DBA23 DBA24 DBA25 DBA26 DBA27 DBA28 DBA29 DBA30 DBA36 DBA37 DBA38 DBA39 DBA40 DBA41 DBA42 DBA43 DBA44
SKU:
Availability:

Quantity:



Buy Now Add to Cart 10 0

Description

Model No.	Description	For use with	Hole Dia.	Hole Depth	Hole bottom shape	Dimension

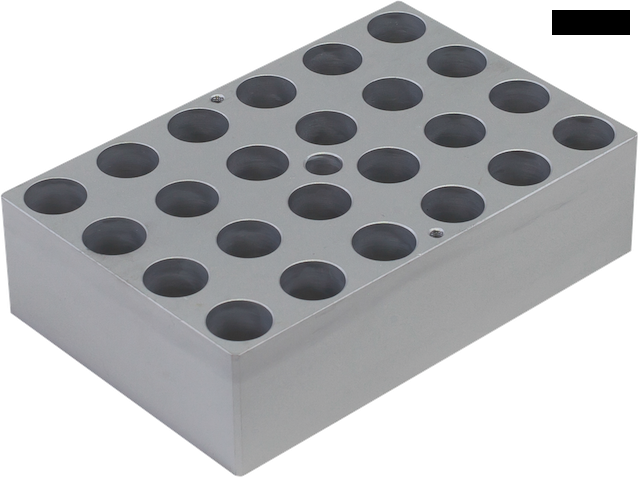

DBA01	24✖5ml Block	5ml Round Bottom Tubes	Φ13.5mm	30mm	Round Bottom	117.8✖77.8✖31.5mm
DBA02	12✖1.5ml Half Block	1.5ml VWR Microtubes	Φ10.8mm	30mm	Conical Bottom	77.8✖58.9✖31.5mm
DBA03	10✖10/15ml Half Block	10/15ml Round Bottom Tubes	Φ16mm	48.5mm	Round Bottom	77.8✖58.9✖50mm
DBA04	96✖0.2ml Block	0.2ml PCR or Microtubes	Φ6.4mm	19.5mm	Conical Bottom	117.8✖77.8✖40mm
DBA06	24✖1.5ml Block	1.5ml VWR Microtubes	Φ11mm	36mm	Conical Bottom	117.8✖77.8✖40mm
DBA07	48✖0.2ml Tubes or 6 PCR Strips Half Block	0.2ml Tubes or 6 PCR Strips	Φ6.1mm	19.5mm	Conical Bottom	77.8✖58.9✖40mm
DBA08	24✖1.5/2.0 ml Block	1.5/2.0 ml VWR/Eppendorf Microtubes	Φ11.5mm	37mm	Conical Bottom	117.8✖77.8✖40mm
DBA09	30✖0.5ml Block	0.5ml PCR Tubes	Φ7.9mm	27.6mm	Conical Bottom	117.8✖77.8✖40mm
DBA10	Flat Block	96 Well or 384 Well Plate Microscope Slides	/	/	/	117.8✖77.8✖40mm
DBA12	96✖0.1/2.0ml PCR Block	0.1/2.0ml PCR	Φ6.1mm	12.5mm	Cone-shape Bottom	117.8✖77.8✖50mm
DBA16	12✖15ml Block	15ml Centrifuge Tubes	Φ16mm	48.5mm	Conical Bottom	117.8✖77.8✖50mm
DBA17	5✖50ml Block	50ml Centrifuge Tubes	Φ29mm	48.5mm	Conical Bottom	117.8✖77.8✖50mm
DBA23	30✖6mm Tubes Block	6mm Standard Test Tubes	Φ6.5mm	18mm	Round Bottom	117.8✖77.8✖50mm
DBA24	24✖10mm Tubes Block	10mm Standard Test Tubes	Φ10.7mm	38mm	Round Bottom	117.8✖77.8✖50mm
DBA25	20✖12/13mm Tubes Block	12/13mm Standard Test Tubes	Φ13.9mm	48.5mm	Round Bottom	117.8✖77.8✖50mm
DBA26	20✖15/16mm Tubes Block	15/16mm Standard Test Tubes	Φ17.5mm	48.5mm	Round Bottom	117.8✖77.8✖50mm
DBA27	12✖17/18mm Tubes Block	17/18mm Standard Test Tubes	Φ19.1mm	48.5mm	Round Bottom	117.8✖77.8✖50mm
DBA28	8✖20mm Tubes Block	20mm Standard Test Tubes	Φ21mm	48.5mm	Round Bottom	117.8✖77.8✖50mm
DBA29	8✖25mm Tubes Block	25mm Standard Test Tubes	Φ26.2mm	48.5mm	Round Bottom	117.8✖77.8✖50mm
DBA30	3✖40mm Tubes Block	40mm Standard Test Tubes	Φ40.5mm	48.5mm	Round Bottom	117.8✖77.8✖50mm
DBA36	20✖12mm Vials Block	12mm Vials	Φ12.7mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA37	12✖15mm Vials Block	15mm Vials	Φ15.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA38	20✖16mm Vials Block	16mm Vials	Φ16.4mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA39	12✖17mm Vials Block	17mm Vials	Φ17.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA40	12✖19mm Vials Block	19mm Vials	Φ19.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA41	9✖21mm Vials Block	21mm Vials	Φ21.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA42	8✖23mm Vials Block	23mm Vials	Φ23.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA43	8✖25mm Vials Block	25mm Vials	Φ25.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm
DBA44	6✖28mm Vials Block	28mm Vials	Φ28.8mm	48.5mm	Flat Bottom Hole	117.8✖77.8✖50mm

Dry Bath Block
